P-QUADRO ADVANCE driver escluso
PQAN-421240

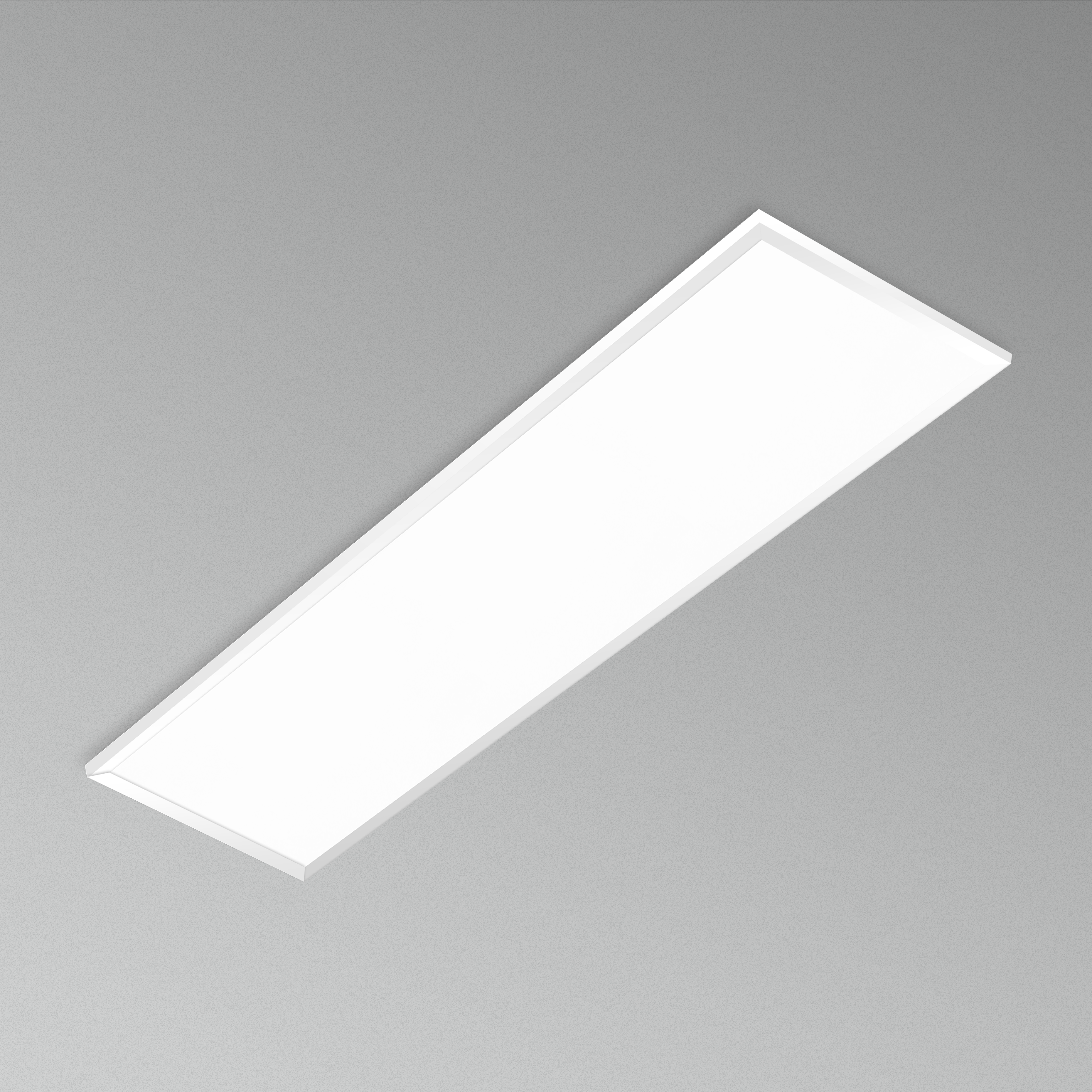

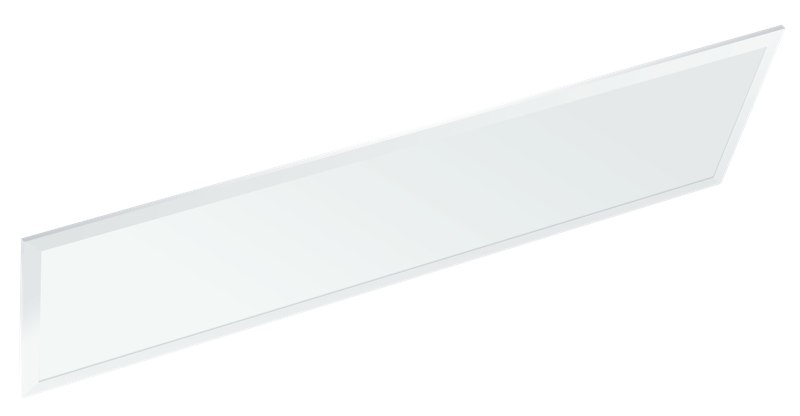

Led panels with an elegant and ultra-thin design that integrates perfectly with the architecture of the interior spaces.
- Power
- 42W (100W CFL )
- Luminous flux
- 4300 Lm
- Light color
- 4000 K (Natural white)
General characteristics
| Item number | PQAN-421240 |
| EAN code | 9090171015898 |
| Technology | LED |
| Type | LUMINAIRE |
| Family | PANELS |
| Line | P-QUADRO ADVANCE |
Dimensions
| Height | 10 mm |
| Length | 1195 mm |
| Width | 295 mm |
| Thickness | 10 mm |
| Net weight | 2200 gr |
Packing
| Package | Box |
| Gross weight | 2600 gr |
| Master Carton | 6 pz |
| Inner Carton | 1 pz |
Technical features
| Effective power | 42 W |
| Equivalent power | 100W CFL |
| Source luminous flux | 4300 Lm |
| Output luminous flux | 3900 Lm |
| Flux measurement angle | 360° |
| Light color | 4000 K |
| Beam opening | 120° |
| Color rendition (CRI) | 80 |
| Dimmable | N |
| Dimmer protocol | 0-10 Volt |
| Light Sensor | N |
| Voltage | 38-42 V/DC |
Other characteristics
| Warranty years | 3 |
| Current consumption | 950 mA |
| UGR | 19 |
| Duration | 30000 h |
| Ignition cycles | 15000 |
| Operating temperature | -10 +40 °C |
| Isolation Class | III |
| Degree of protection | IP20 |
| Impact resistance | IK07 |
